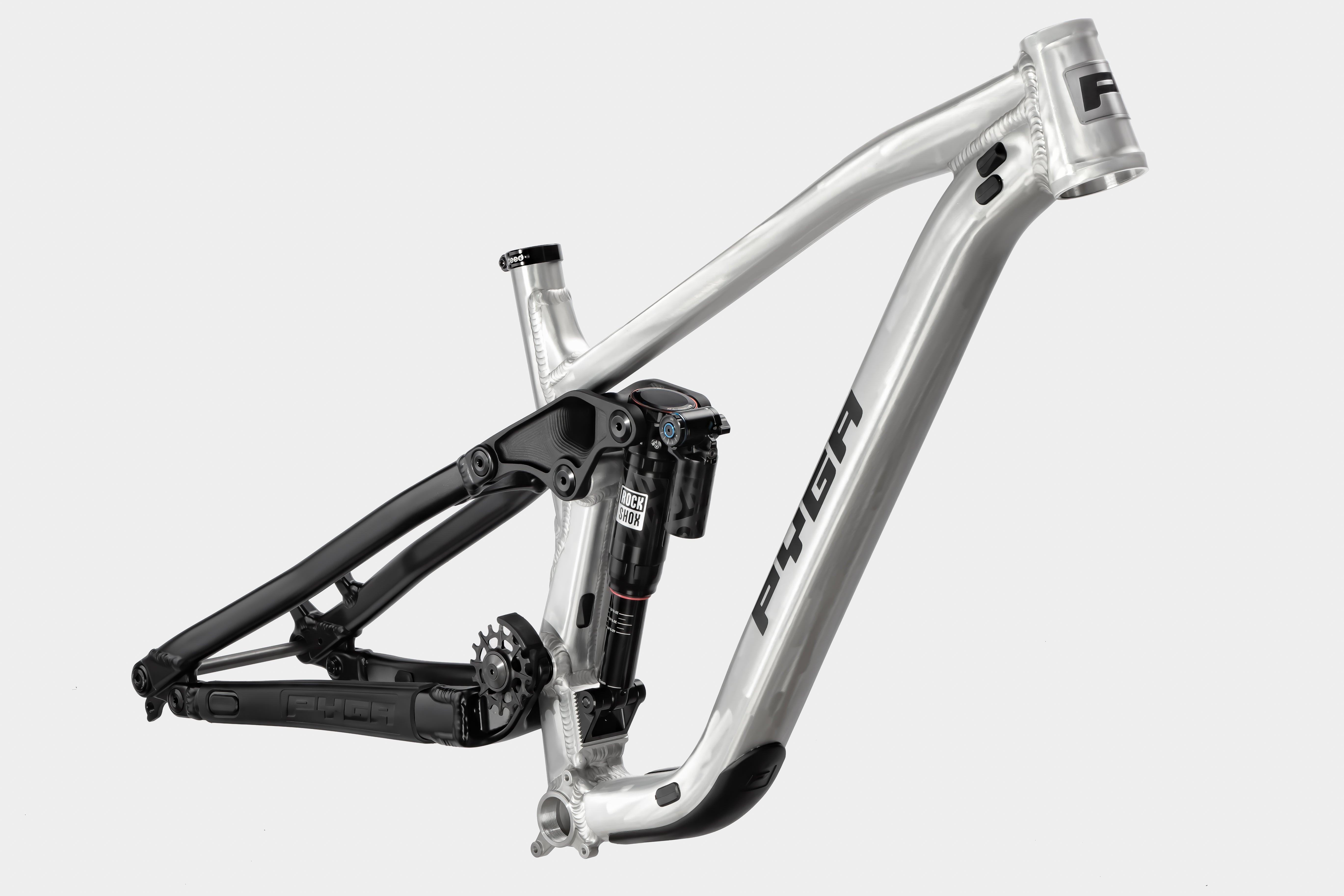

SLAKLINE HP4

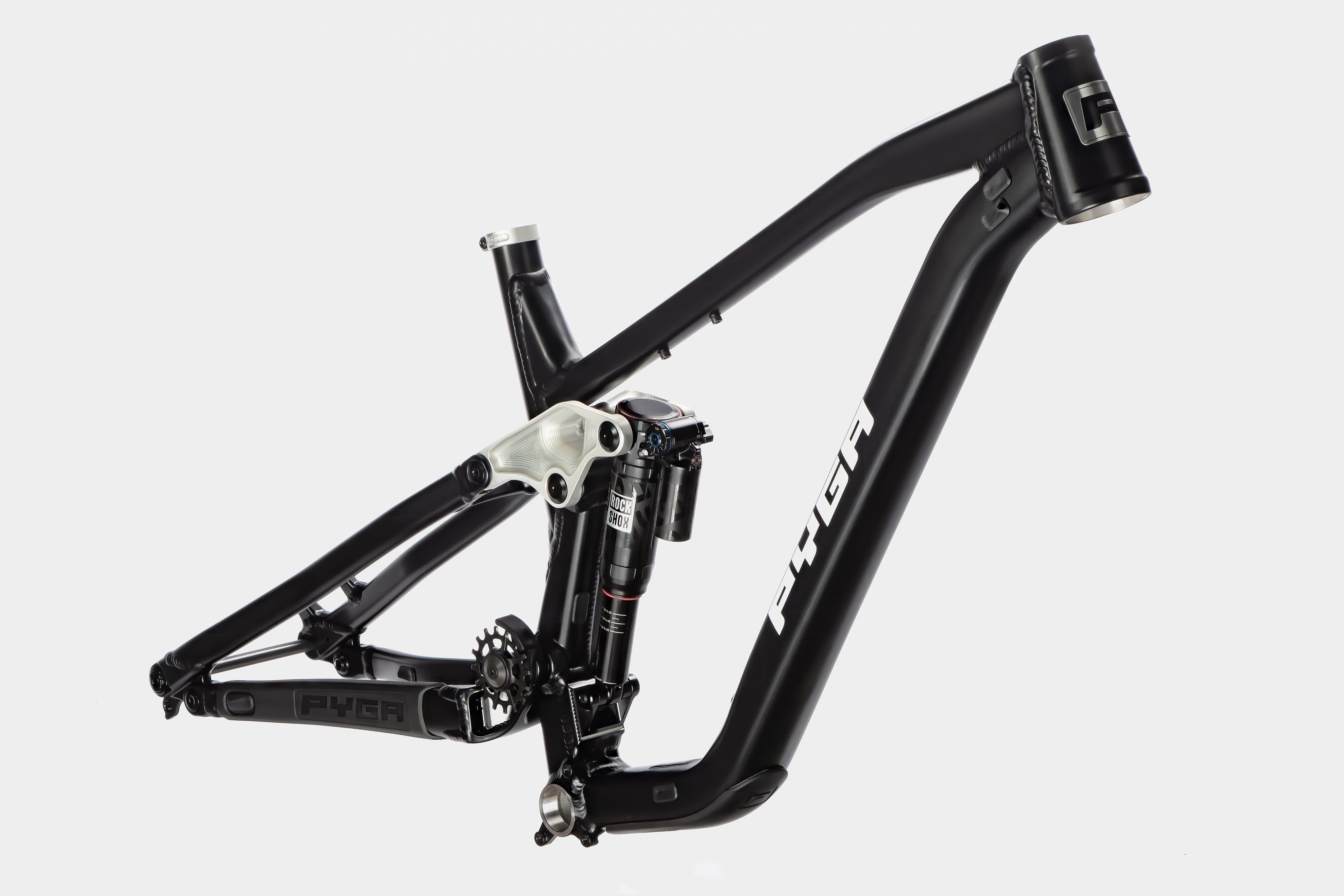

The SLAKLINE HP4 is our fully-fledged 170mm Enduro weapon. It utilizes our tried and tested Mid-High-Pivot suspension design found on the EVOLVE Ebike. The “HP4” as we like to call it, uses our proven 4-bar horst linkage design featuring the patented i -track linkage design which achieves a well-balanced feel, and optimized progression of 25%, that can accommodate both air and coil shocks. The frame comes standard with a 225×67.5 shock length but can be increased to 180mm travel by changing its stroke to 72.5mm. Should you want less than 170mm rear travel you can always add our 20mm shock extender to a 205mm length shock.

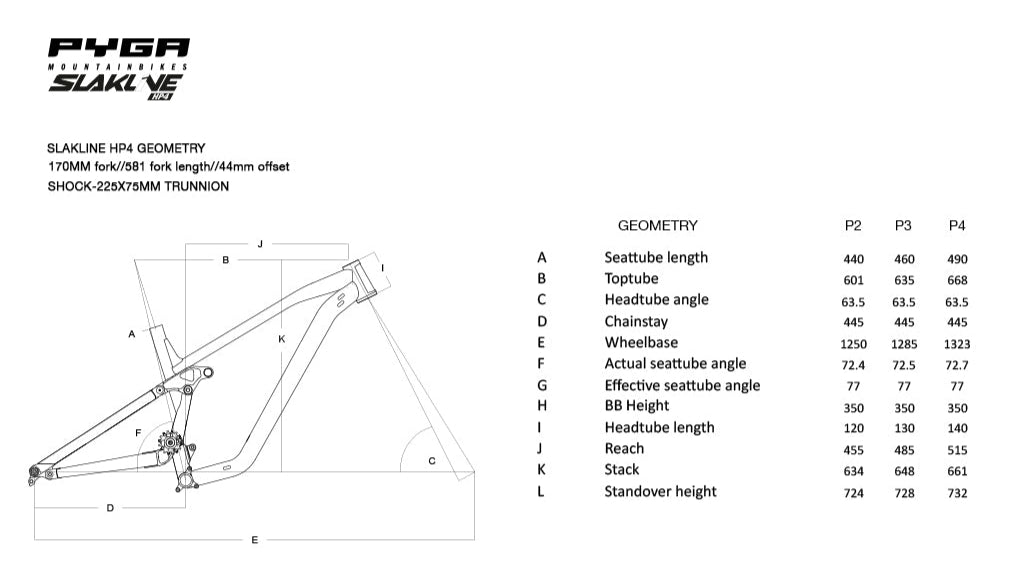

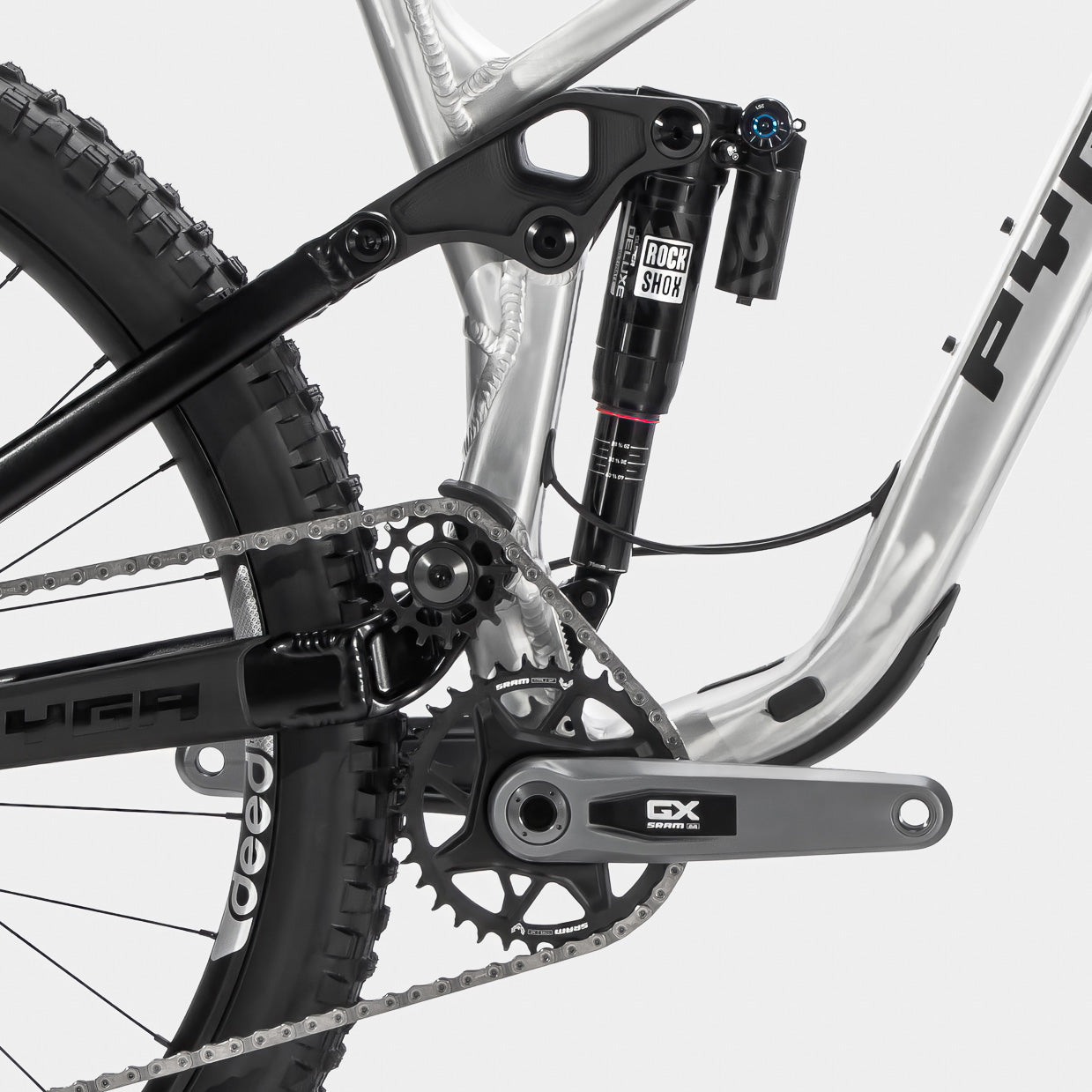

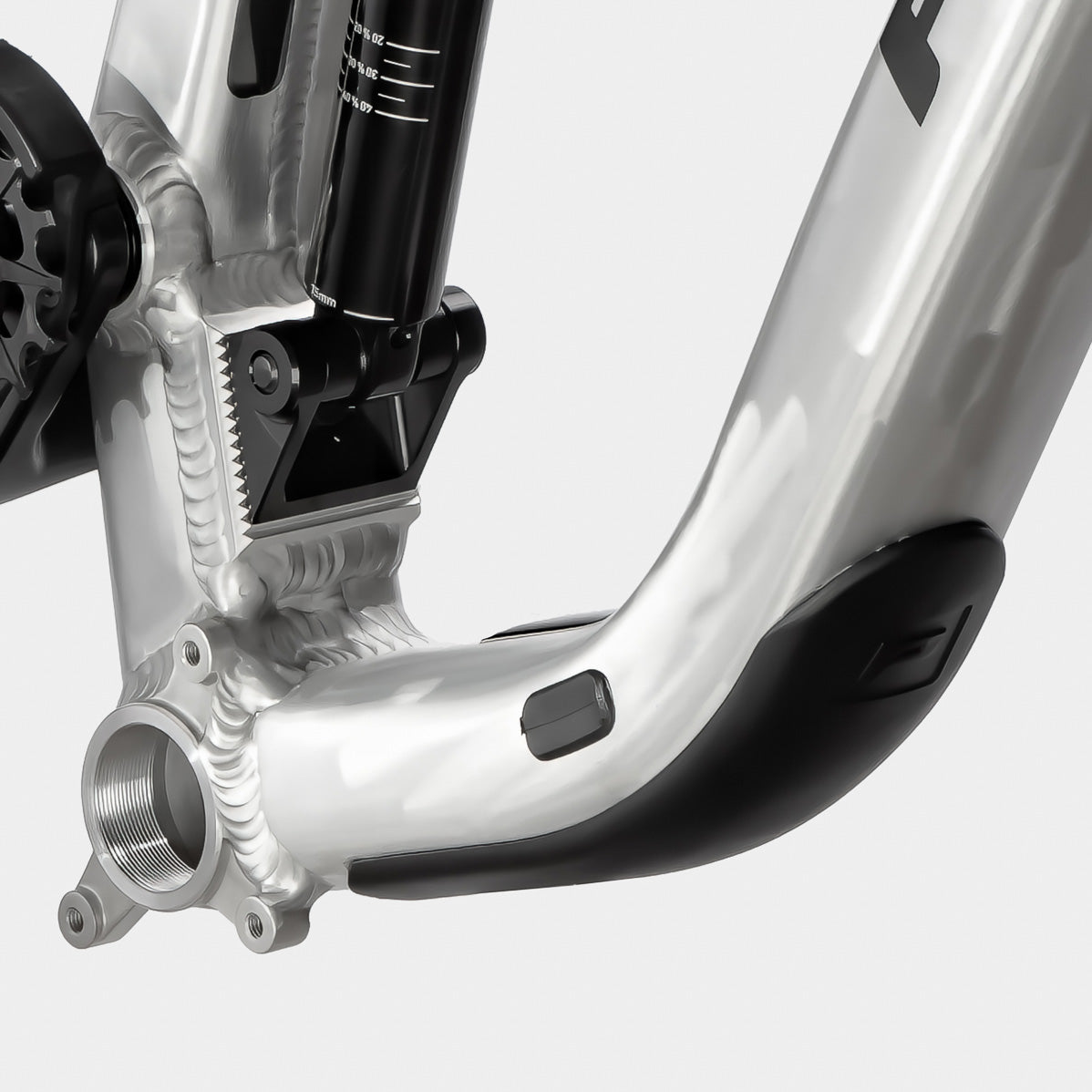

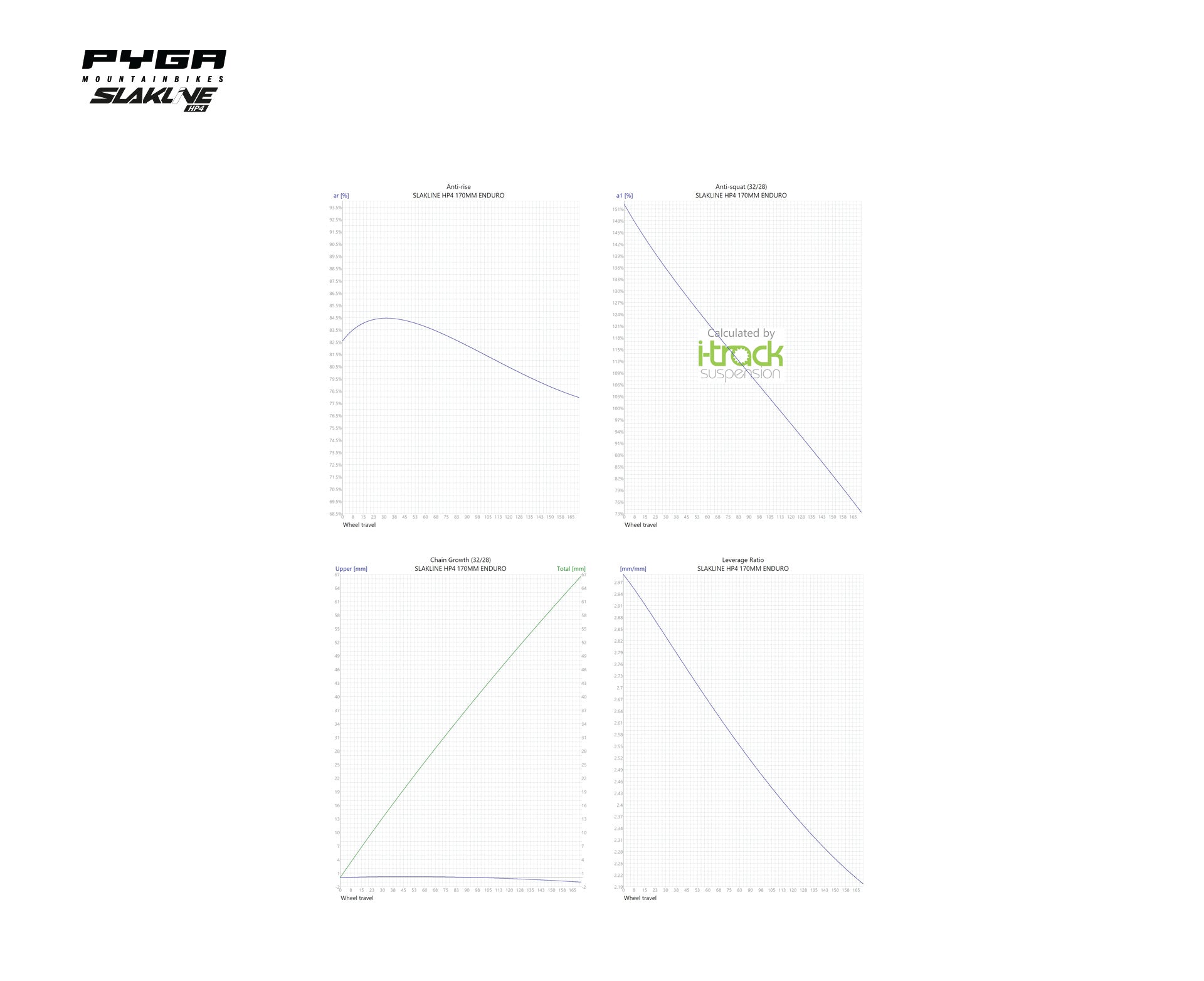

The i-Track patented layout, gives us more freedom to achieve our design goals. We are able to achieve a good high ant-squat % while reducing the amount of upper chain growth and in turn, pedal kickback. This allows for a very smooth ride while hammering on the pedals or coasting at high speed. With its Hardened stainless steel 16t idler pulley and thick thin tooth design, it will last for 1000’s of km and helps prevent unwanted chain drops. Featuring an adjustable lower shock mount, its 64-degree head angle can be adjusted by 0.35deg either more or less. BB height changes by 5mm up or down.

If you’re looking for a beautiful robust Handcrafed bike that makes you faster…..look no further.
