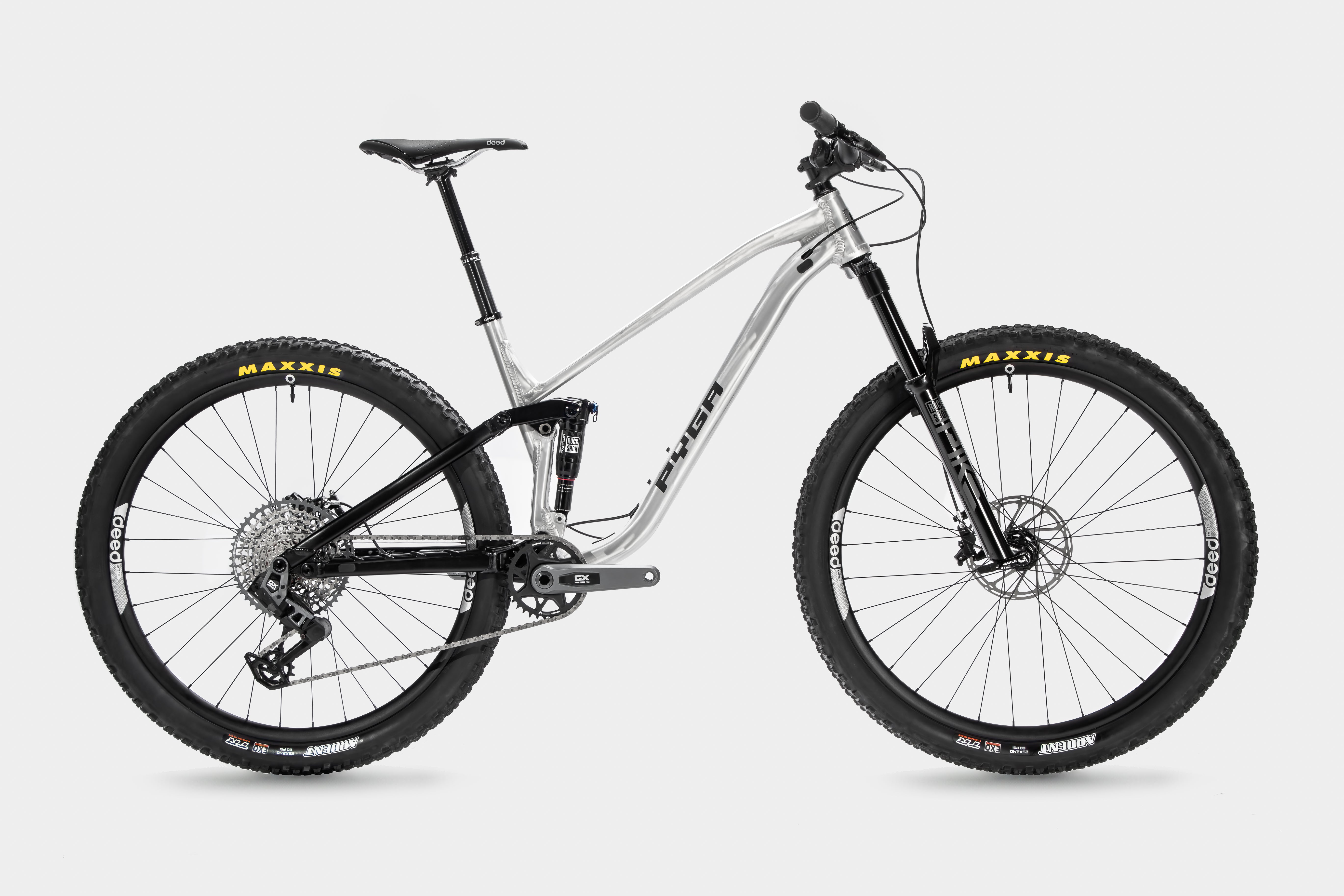

TiG

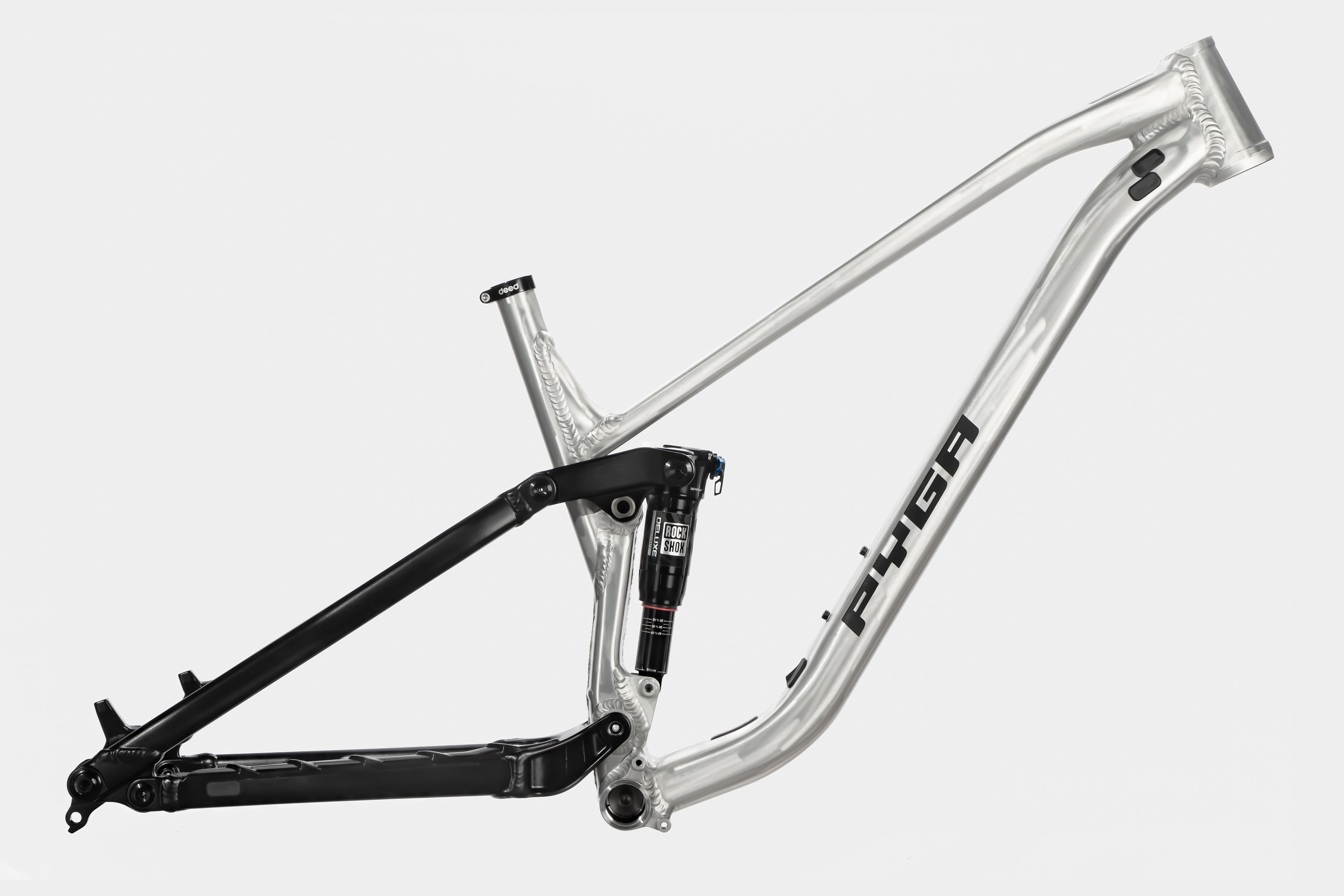

The TIG is our 135mm, super versatile lightweight frameset, designed for all-day technical Down Country and trail riding. Handcrafted right here in South Africa, from 6066 T6 heat-treated aluminium alloy as used on all our frame models. This alloy has superior properties to 6061 and even higher Tensile strength than 7020 with more elasticity and fatigue resistance.
Buying a handcrafted PYGA sometimes involve some input from our team. For more info on build options, upgrades, custom color options or buying through your local PYGA dealer, hit the "Request a Quote" button below and our team will get back to you.
BUILD OPTIONS & PRICING
Color Options:

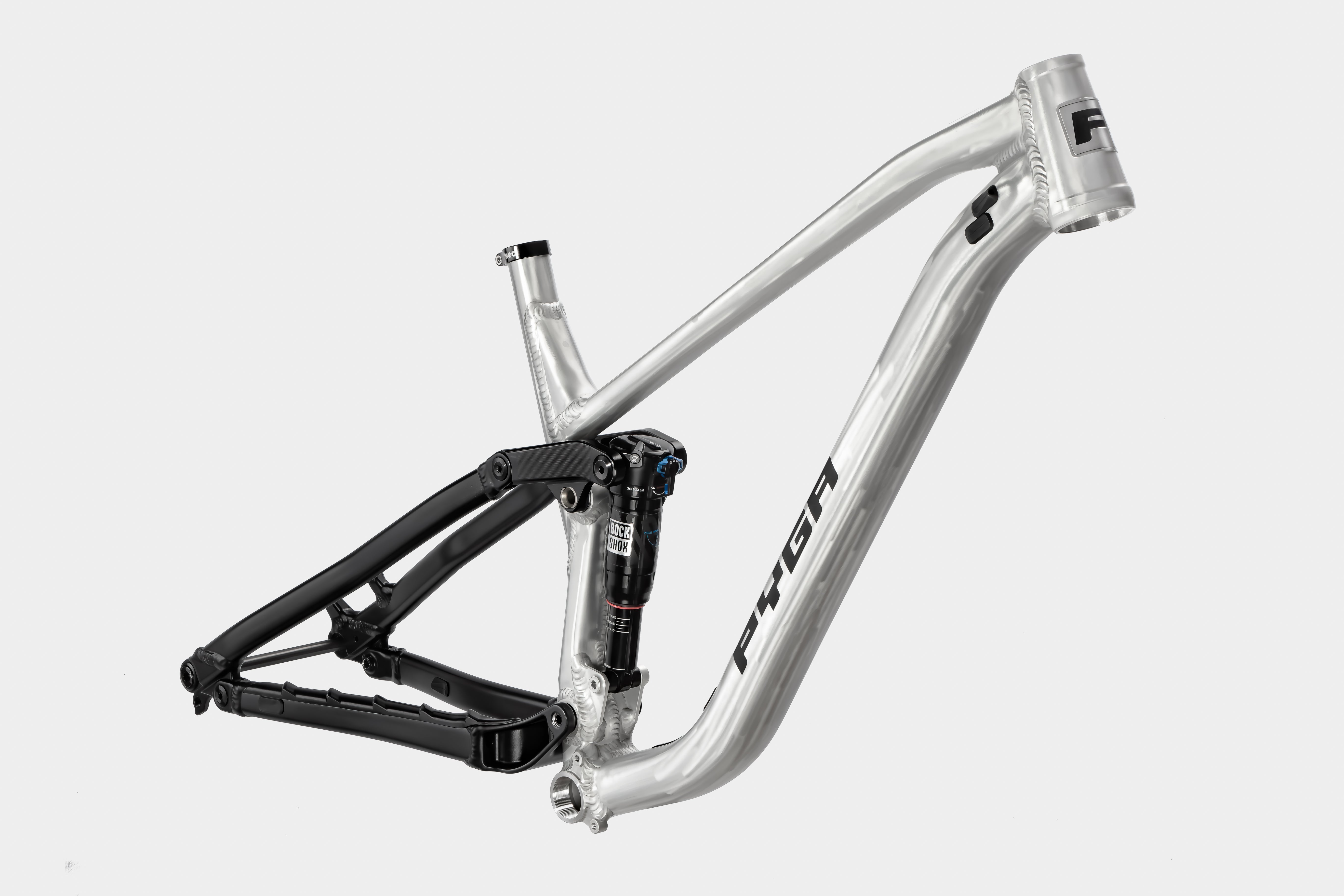

- Brushed Raw Front/Satin Black Rear

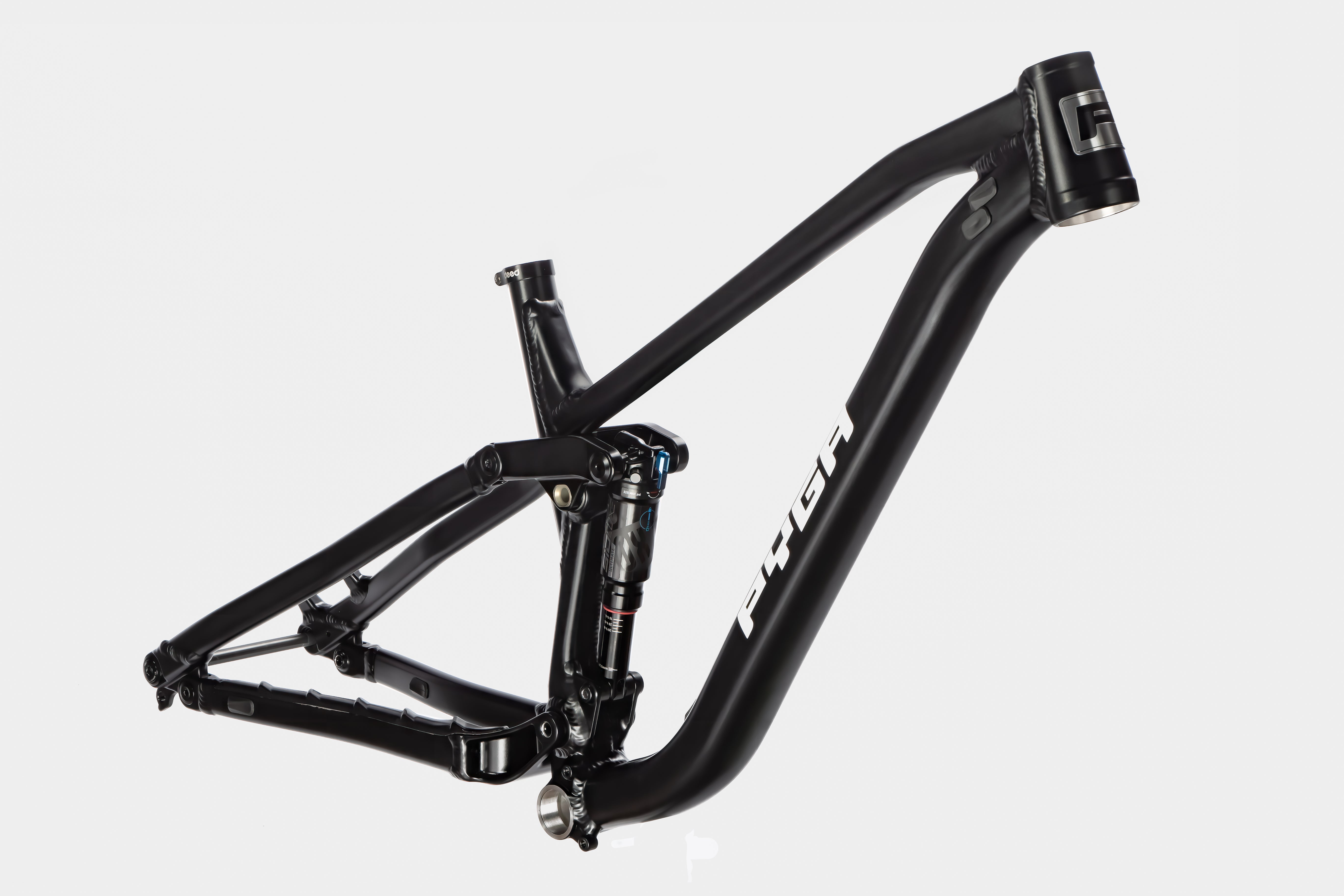

- Satin Black Front & Rear
- Custom Color
Frame Sizes:
Small, Med, Large, Extra Large
Please consult the Fit & Sizing Chart for your recommended fit
Frame: R 33,000.00 (excl shock)
Frameset: R 40,000.00 (including shock, seat clamp, rear axle)

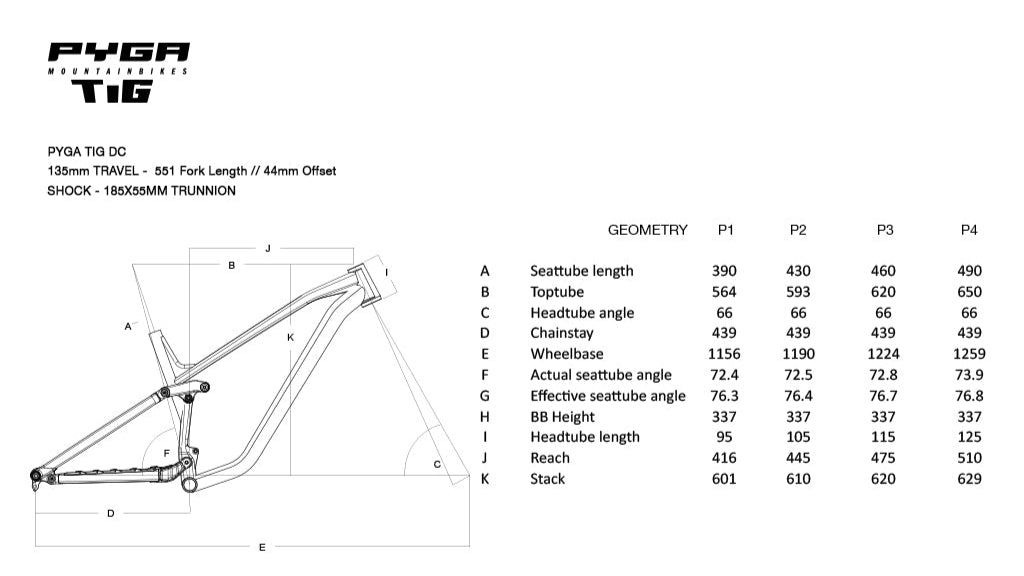

GEOMETRY

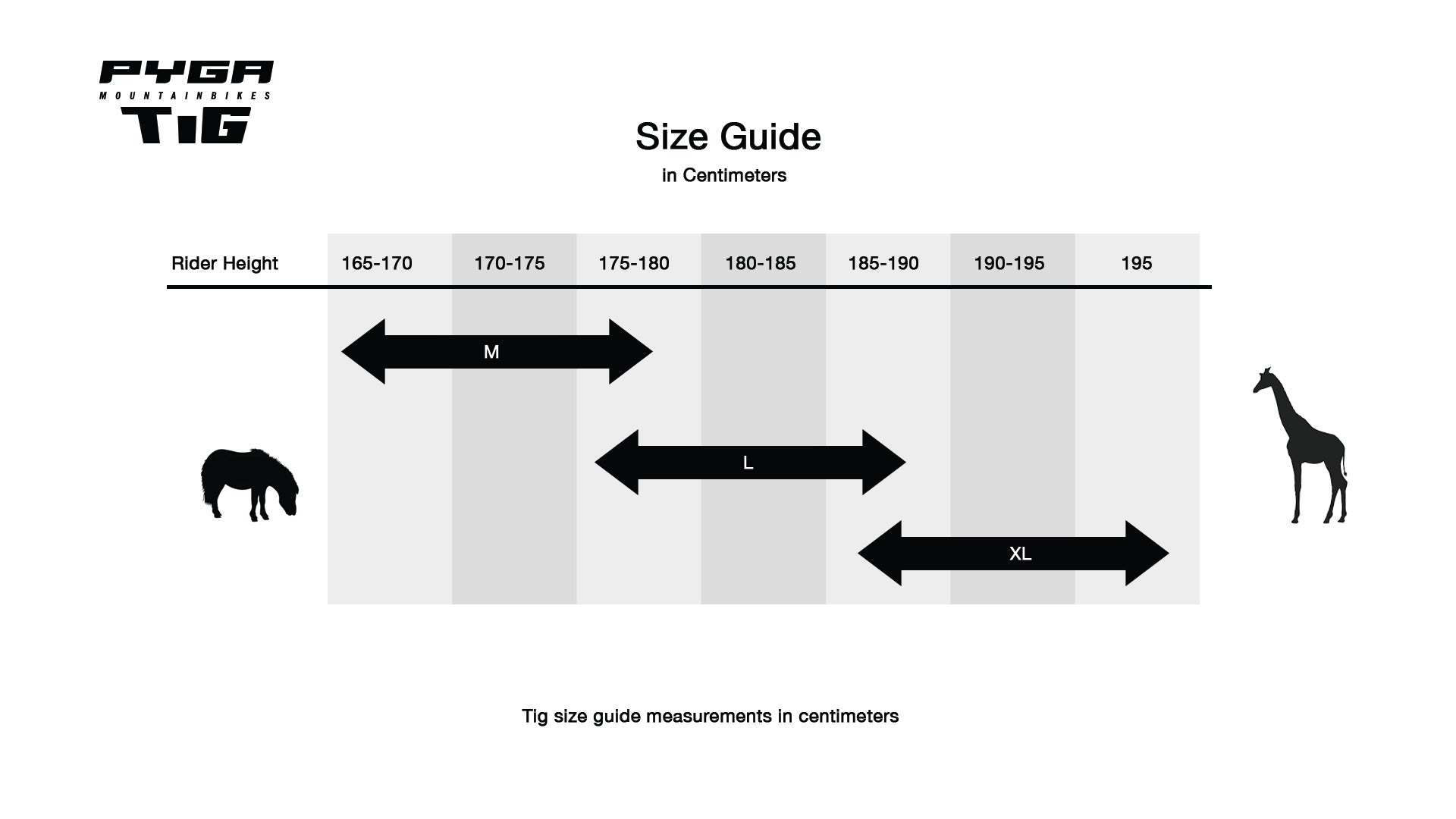

FIT & SIZING

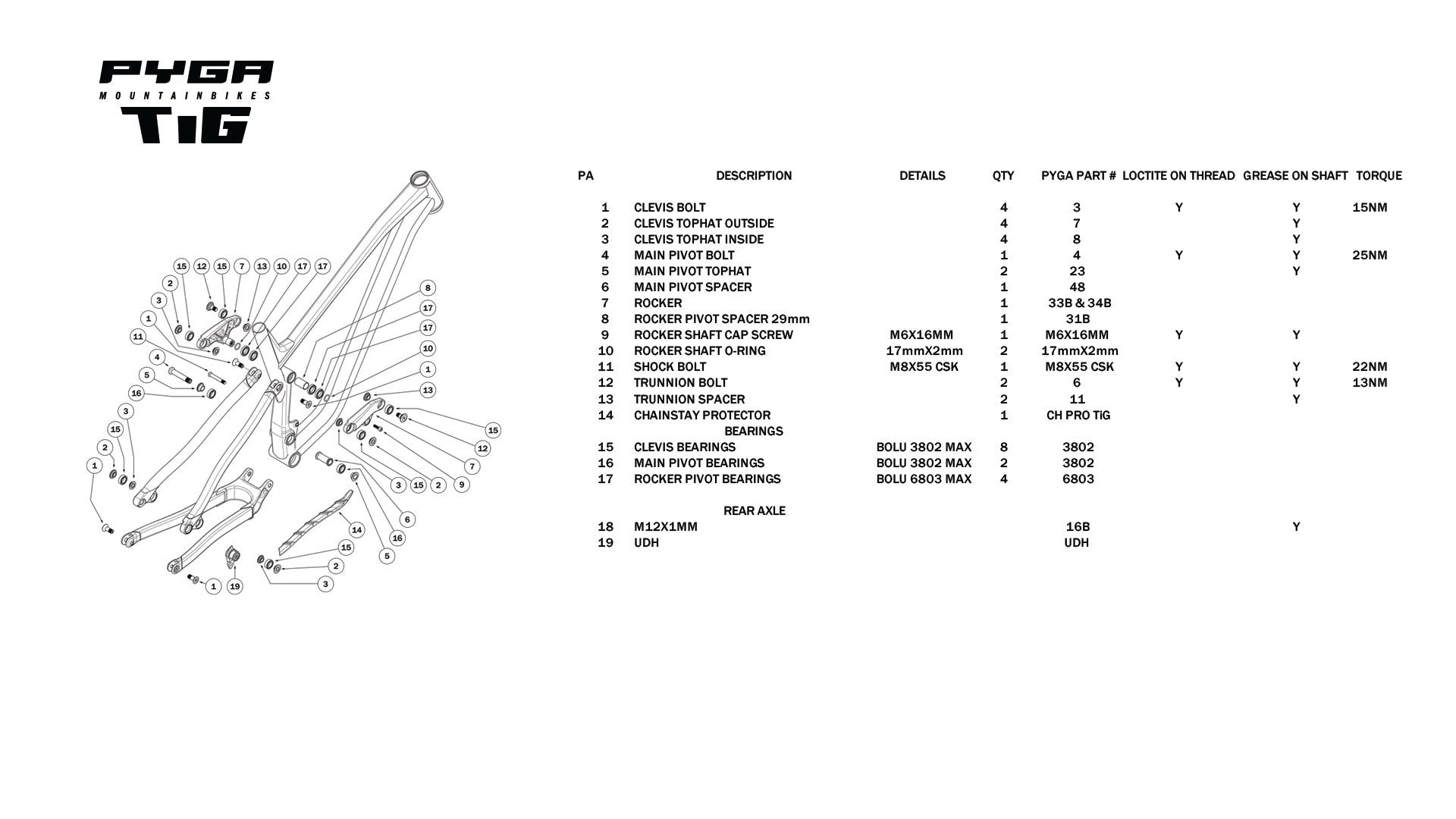

SPECIFICATION & EXPLODED VIEW
Frameset:6066 T6 Aluminium, 120mm Travel
Rear Shock: Rockshox SID Luxe ULT Trunnion 185×50mm
Rear Axle: UDH M12 x 1mm
Seatpost Diameter: 30.9mm
Seat Clamp: DEED 34.9mm
Bottom Bracket: 73mm Threaded
Headset Spec: IS41/IS42
Fork Travel: 120mm
Recommended Axle to Crown:531mm
Hanger: UDH
Wheel Size: 29″
Max Tire Width: 2.35″
Intended Use:XC/Marathon

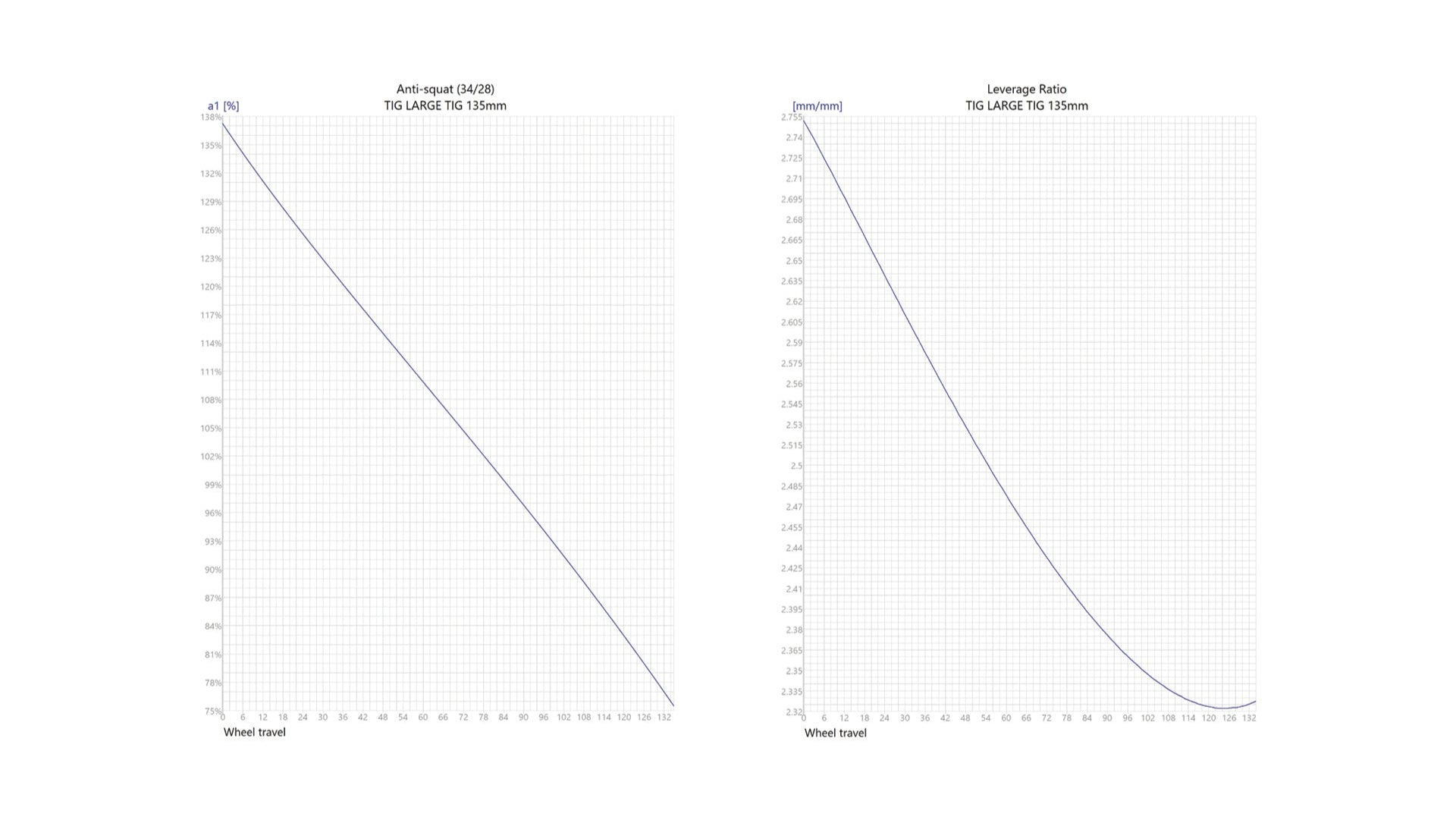

SUSPENSION DETAILS

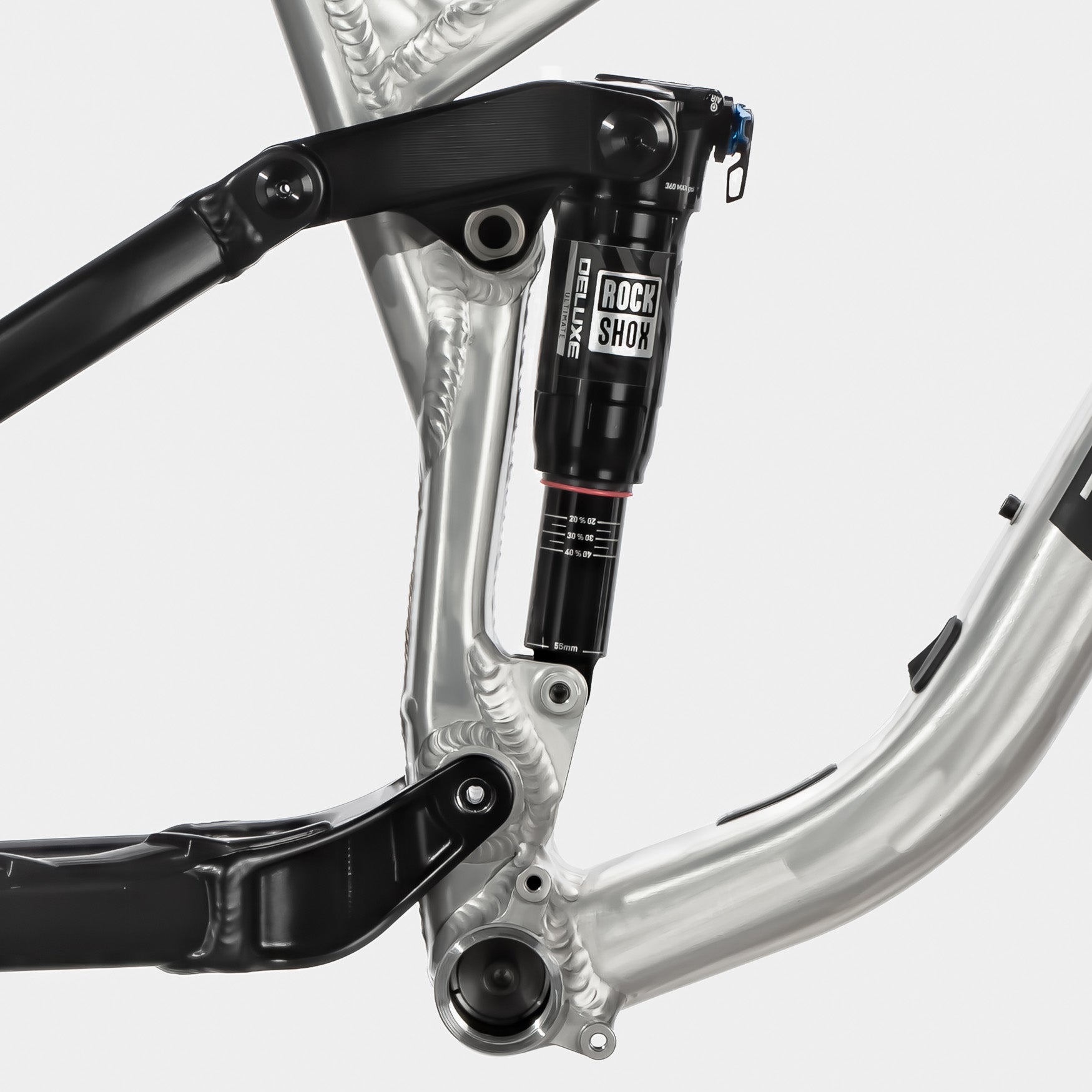

HANDCRAFTED DETAILS

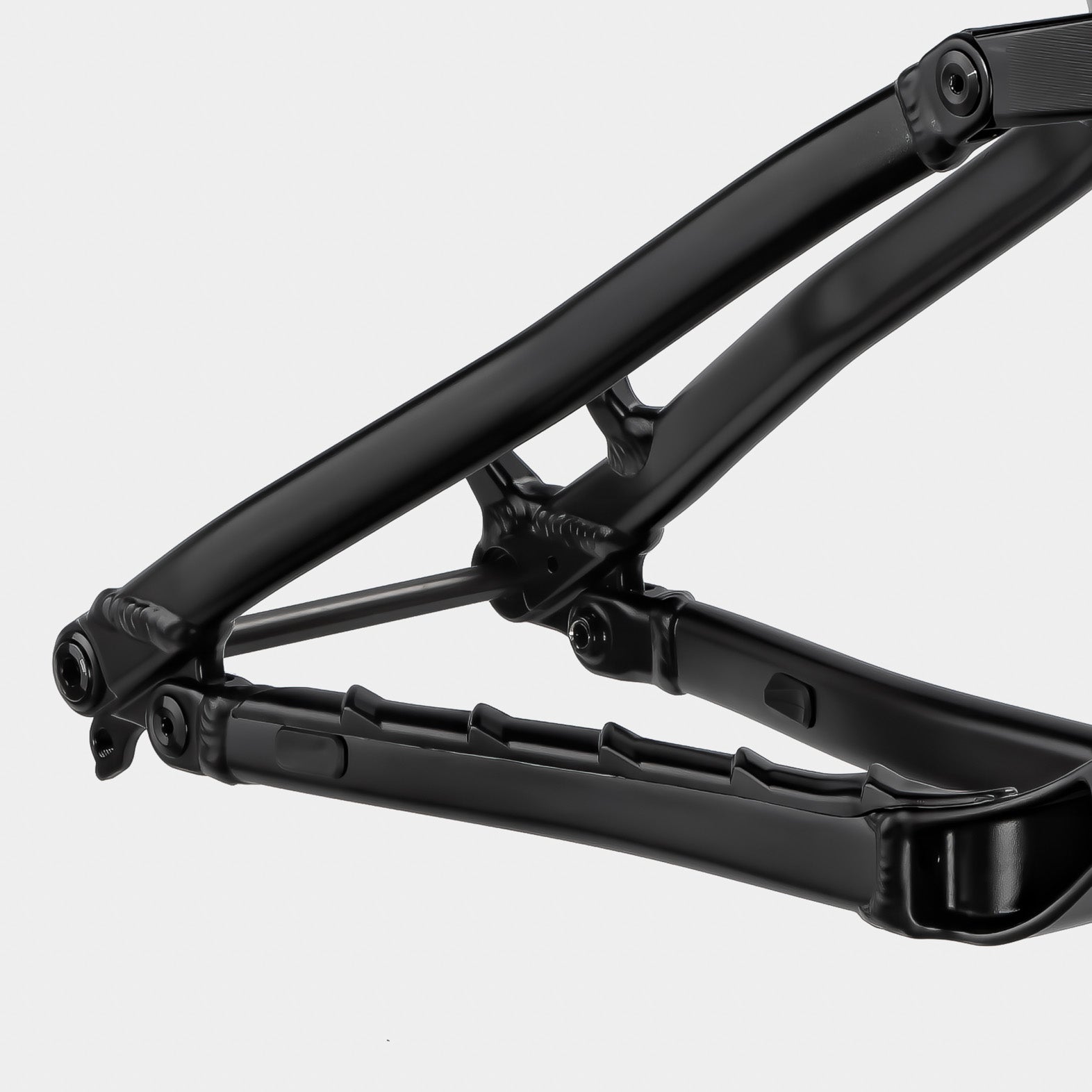

UDH System
In addition to a 148mm boost rear end, featuring the UDH system, the TIG is ready for SRAM Hangerless Derailleurs.
Handcrafted in South Africa
Handcrafted right here in South Africa, from 6066 T6 heat-treated aluminium alloy as used on all our frame models.

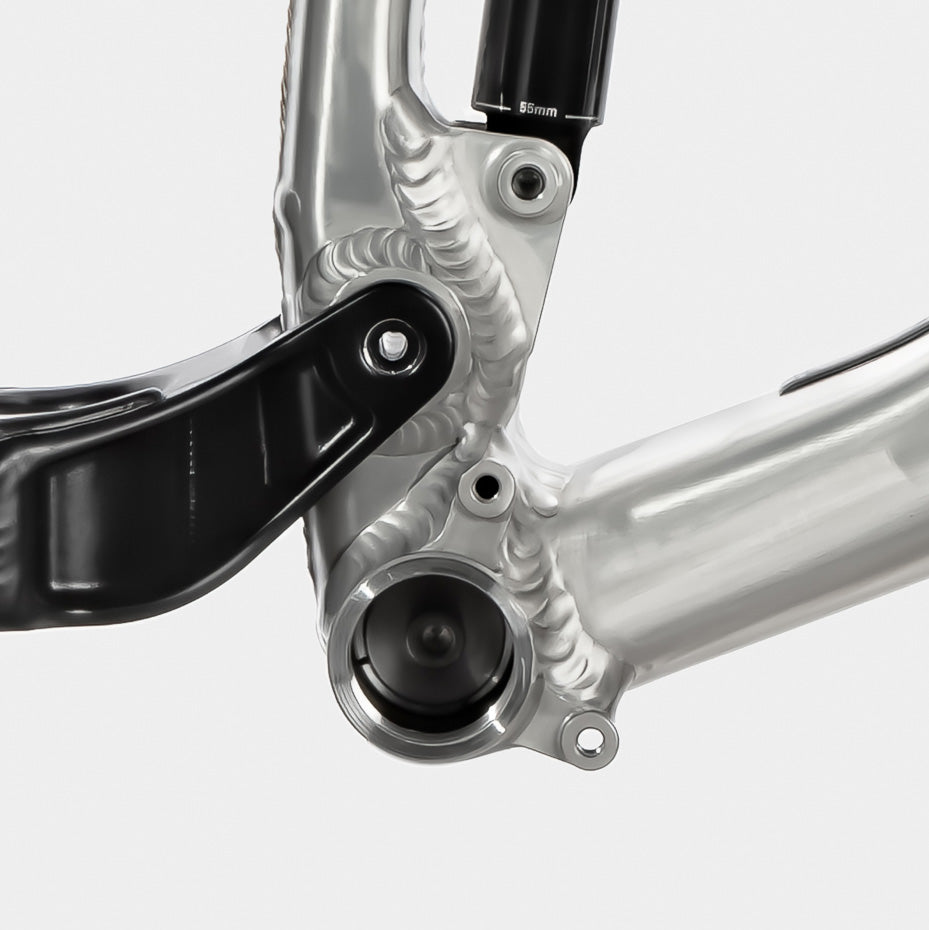

ISCG 05 chain guide
There’s a two bolt ISCG 05 chain guide mount and all pivots use additionally sealed double-row full complement bearings.
